SPECIFICATIONS

Brand Name: hococa

Certification: UL,RoHS,LVD,FCC,CE,ce,FCC,LVD,ROHS,UL

Choice: yes

Current: 10A

Hign-concerned Chemical: None

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Model Number: 302

Origin: Mainland China

Remote Distance: 30m-100m

Switch Type: REMOTE CONTROL

Warranty: 2 years

Describe

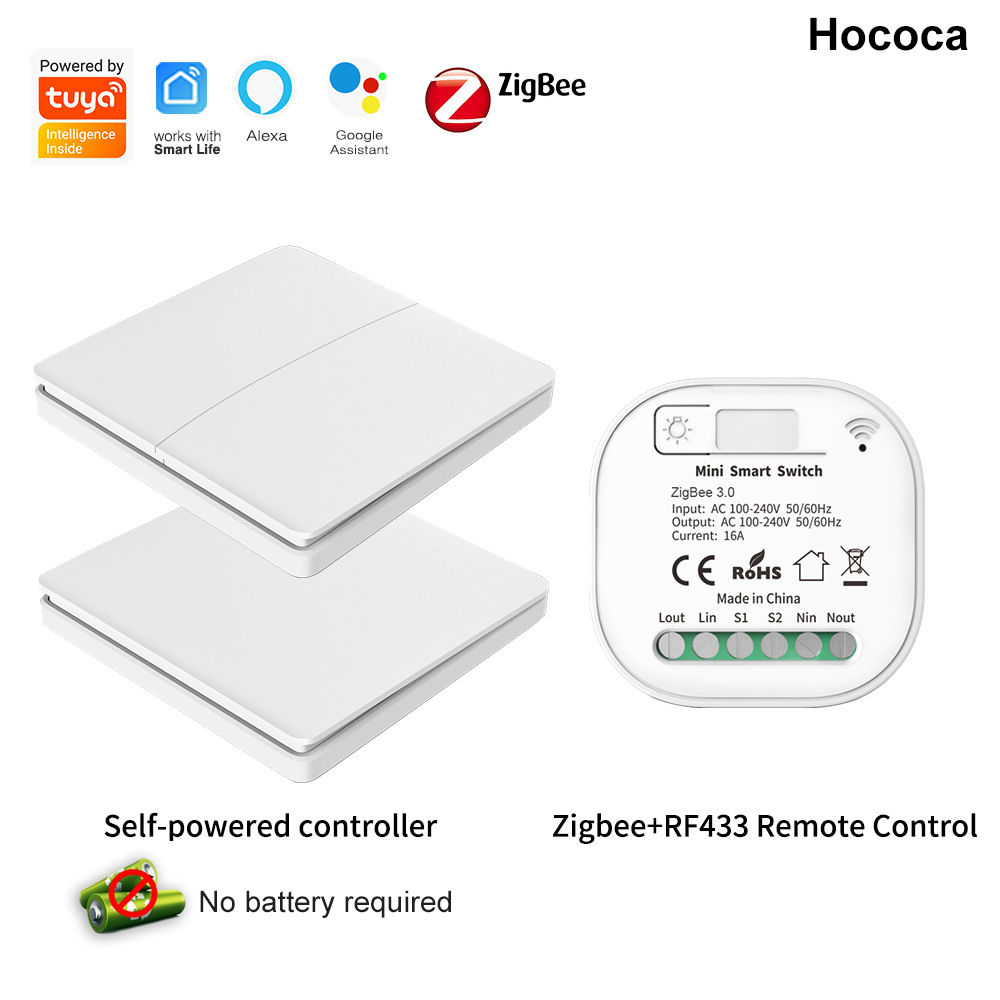

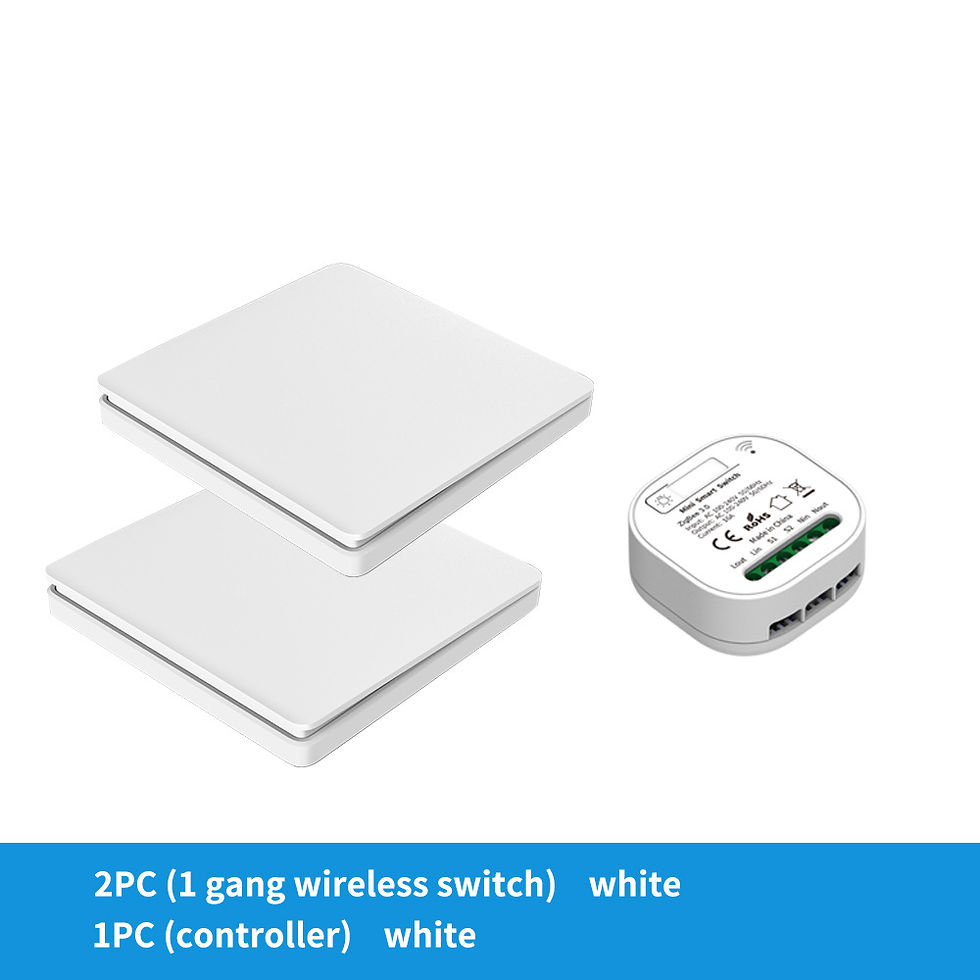

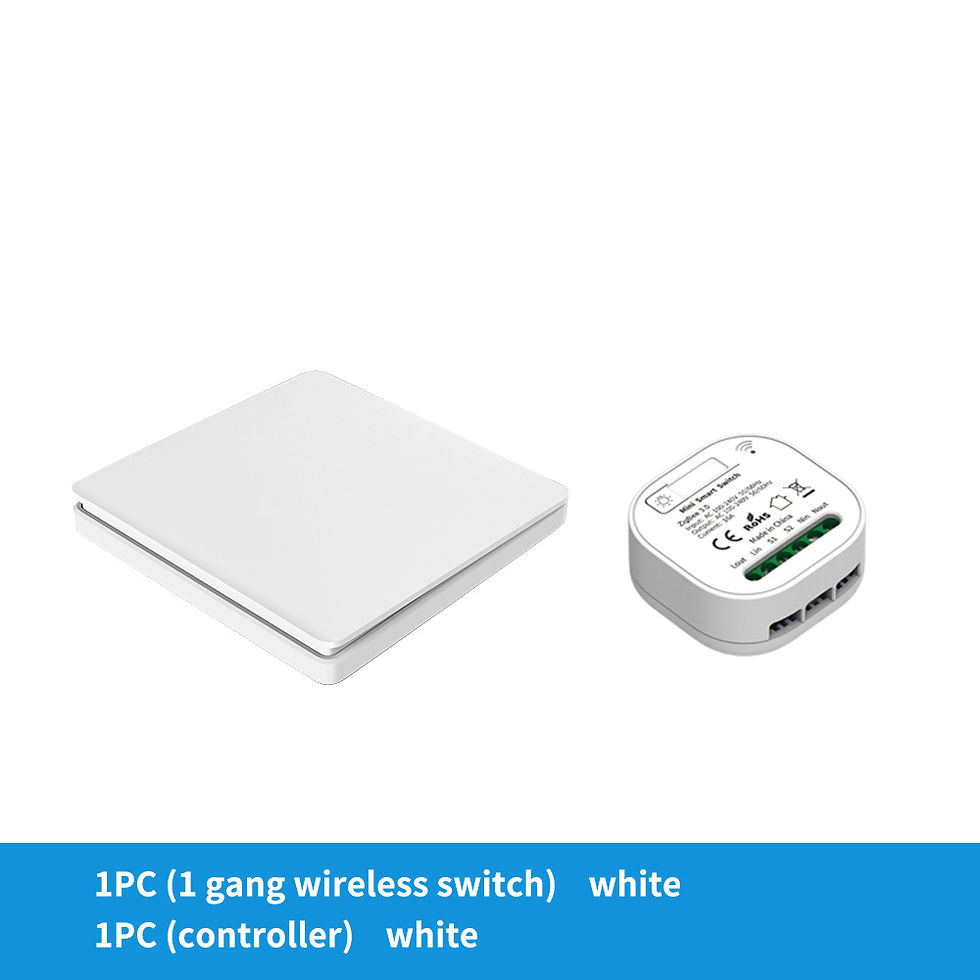

1.This is a self powered wireless switch with intelligent functions, which uses Tuya Zigbee modules to achieve intelligent control. It requires Tuya Zigbee gateway support and needs to be prepared in advance. 2.It also supports wireless remote control of RF433, which does not rely on network or gateway. 3. Matte craftsmanship, simple and beautiful, with 1 gang and 2 gang for free selection 4. Carefully designed, years of research and development, long distance, responsive 5. No wiring required, easy to install, saves labor and materials 6. The receiver need to connect neutral wire and live wire, compatible with AC 100~250V 50/60Hz, no flicker, stable and reliable 7. The receiver comes with overload protection and is made of PC flame-retardant material for greater safety 8. The receiver is designed with a small size and can be placed in the bottom box of the switch. It can also be inserted into the lamp tube to meet various fixing methods 9. Rocketed panel, like traditional switches, is more in line with usage habits 10. 86 standard size, reserved with screw holes, flexible and diverse installation options 11. After 200000 press tests, we provide original factory warranty services 12.Widely used: This product can be used in esidence, hotel, villa, hospital construction sites, gardens, homes, farms, factories, offices, laboratories, supermarkets. Any device can be remotely controlled through a remote control, such as light,rolling shutters, fences, fans, desk lamps.

Technical parameters

1.Operating voltage: receiver AC 100-240V 50/60Hz,transmitter Kinetic power generation 2.Wireless distance: about 100 meters (open space) ，about 30 meters (no partition) (this data is the obstacle free test distance of the experimental open space, theactual distance will vary depending on the use environment and the obstacles, please take the actual distance as the standard) 3.Receiver size:48x49x23mm Transmitter size:86x86x16.5mm 4.Rated Current:AC 10A/16A 5.Standby power:<0.25W 6.Working frequency: RF433MHZ 7.Storage switch quantity:Can store 10 wireless switch panel(can be made) 8.Wiring method： wireless light switch receiver needs to be connected to a live wire and a neutral wire. The (Lin) marked on the receiver is connected to the power live wire (incoming live wire), and the (Nin) is connected to the power neutral wire (incoming neutral wire). (Lout) connects the live wire of the device that needs to be controlled (outgoing live wire), and (Nout) connects the neutral wire of the device that needs to be controlled (outgoing neutral wire). 9.S1 and S2 are reserved interfaces for connecting traditional single fire wall switches, which can form a dual control mode with wireless switches without affecting each other. If not necessary, they do not need to be connected

Note:

1. Our product needs to be used with a receiver, unless you have previously purchased our product and need to purchase additional accessories, otherwise purchasing a transmitter or receiver separately will not work. 2. Our product uses RF433 communication, but it cannot be mixed with other RF433 products because in addition to frequency, it also needs to meet the requirements of decoding and coding speed. 3.Wireless control does not require a power supply and can be used outdoors or in humid environments. Pressing to generate electricity does not pose a risk of electric shock 4.Cut off all power before installing the receiver. 5. Cannot be installed inside a metal box as metal will shield signals and cannot be used.

FAQ:

Do I need to pair the product after receiving it? If you purchase a complete set of products, they will be matched correctly at the factory. You only need to connect the receiver to the power and it can be used. Is it possible to add accessories later after purchasing the product? If the purchased products are all of our kind, they can be equipped with accessories at any time, just pair them after receiving the goods. Why can't your product be mixed with products of the same frequency on the market? This is indeed difficult to mix for several reasons. Firstly, other people's products may be encrypted and not allowed to be mixed with products from other manufacturers; Secondly, although they are all products with the same frequency, other factors need to be considered, such as decoding and the speed of sending data packets.
